Mapping and monitoring the wreck of La Surveillante: A French naval frigate lost in 1797 in Bantry Bay.

NMS Wreck no.: W08507

GSI ref. code: 258

Date of loss: 2 January 1797

Ongoing collaboration between INFOMAR and the National Monuments Service continues to produce exciting results on Ireland's underwater cultural heritage. Last autumn Geological Survey Ireland's RV Keary re-surveyed the 1797 wreck of the French frigate La Surveillante in the course of its 2020 INFOMAR operations along the southwest coast. The wreck was originally surveyed in 2007 by the Marine Institute's Celtic Voyager as part of the initial INFOMAR survey of Bantry Bay. The INFOMAR inshore fleet are continuing operations in Bantry Bay and a re-survey of La Surveillante was conducted at the end of September last. The data acquired includes high resolution imagery of the wreck showing in great detail its condition on the seafloor today.

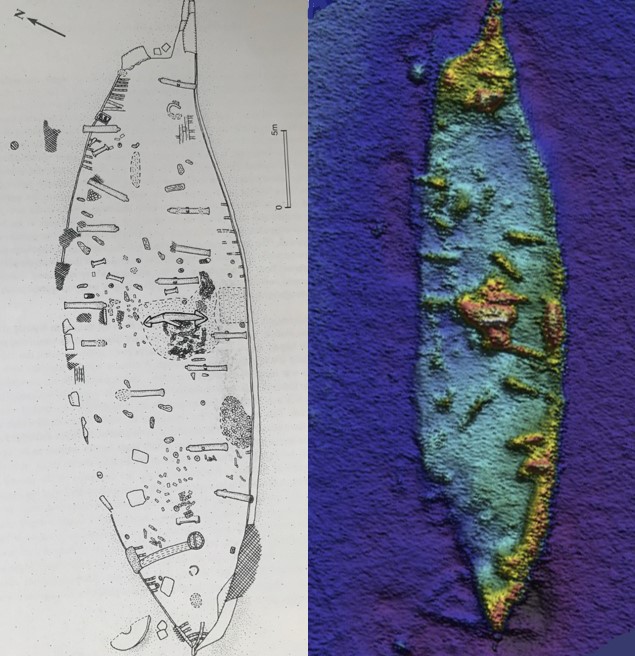

 NMS site plan of La Surveillante generated during the detailed survey of the wreck undertaken by Dr Colin Breen in 1999-2000. When compared alongside INFOMAR’s La Surveillante 2020 imagery, both are impressively similar, suggesting the wreck site is relatively stable (© National Monuments Service & INFOMAR)

Revealing the mysteries and secrets of a historic deep-water shipwreck is not easy. Monitoring and managing such sites can be equally challenging, particularly when they lie at depth, with immense volumes of water covering the wreck on the seabed. In the case of La Surveillante, this is complicated further by the dynamic environment of a working harbour and poor visibility. Technology is therefore proving to be a useful tool for underwater archaeology, assisting in the visualisation of such wrecks and thereby helping to inform a management strategy for monitoring and protecting these important sites.

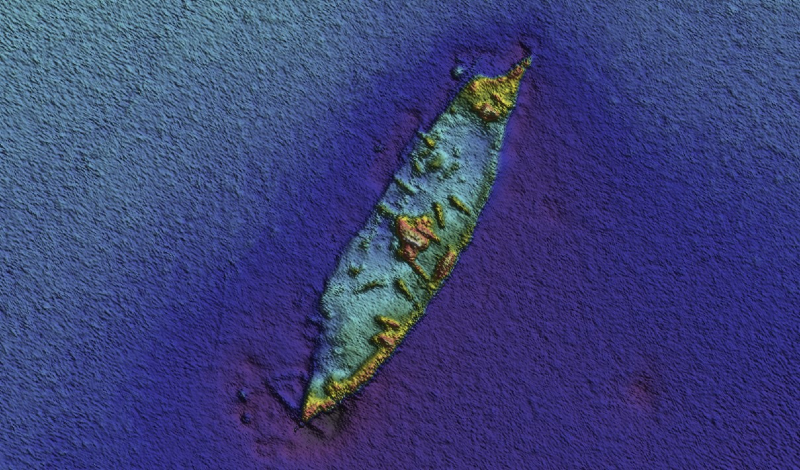

Re-survey imagery of the wreck of La Surveillante by the RV Keary as part of the 2020 INFOMAR Programme; KRY20_04 (© INFOMAR 2020)

Built as a warship, the three-masted frigate, La Surveillante, was fully copper-sheathed and carried 32 iron guns. She was involved in several successful naval engagements against the British during the American War of Independence (1775-1782) but it is from the year 1796 that the fate of La Surveillante becomes inextricably linked to Irish maritime history. The ship was part of a French Fleet involved in an unsuccessful attempt to invade Ireland and overthrow English rule in the country. Bad weather and poor leadership challenged the campaign from the start leading to the scattering and dispersal of the 48-strong invasion fleet. A sizeable number of the fleet's ships arrived off the Bantry coast in December of 1796 but they were forced to return to France due to bad weather. La Surveillante at that point was no longer considered seaworthy and its crew, cavalry and other troops on board were transferred to some of the remaining ships in the fleet. Rather than allow La Surveillante to fall into British hands, the ship was scuttled in Bantry harbour (Breen 2001; Brady et al, 2012).

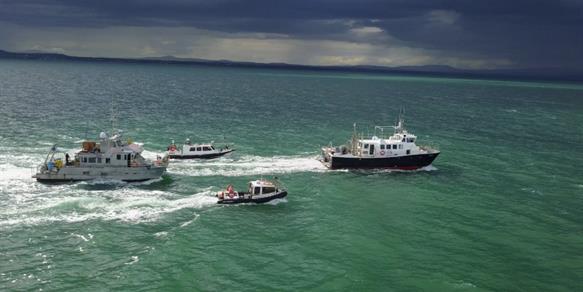

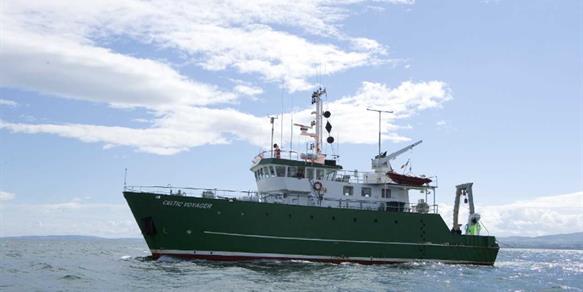

Above: The Marine Institute's Celtic Voyager at sea during INFOMAR survey operations (© Marine Institute 2020).  Below: The GSI inshore mapping fleet at sea during INFOMAR survey operations (© Geological Survey Ireland 2020)

For nearly 200 years the 620-ton La Surveillante remained undiscovered. Then in 1981, during marine surveys following the 1979 Whiddy Island oil terminal disaster, the remains of the frigate was identified on the seabed. From 1999-2000 the National Monuments Service undertook a multi-disciplinary assessment and survey of the wreck, under the archaeological direction of Dr Colin Breen, which brought the cultural significance and extent of the site to light for the first time (Breen 2001, 1).

Combat de La Surveillante contre Le Kebeck, 6 October 1779, by artist Ange-Joseph Antoine Roux, painted in 1811 (© Mariners’ Museum Collection, Newport, Virginia; Public Domain, PC-US expired); www.marinersmuseum.org

The recent INFOMAR imagery of La Surveillante shows clearly the wreck structure and a number of archaeological objects within the wreck, among them the remaining iron guns, as well as specific features, including the damaged stern. Orientated NE-SW and lying in some 35m of water, the bow faces southwest. Also clearly evident is a centrally located concreted mound,  within which are visible brick and iron, chain, iron flanges and the ship's large bower anchor, vertically upended mid-ships, confirming what was recorded in the earlier archaeological surveys (Breen 2001, 65-67). When placed alongside the National Monuments Service's site plan from the 1999-2000 survey, the similarity is striking, indicating that the site is relatively stable within the silty-sandy seabed of Bantry Harbour. The most recent re-survey by INFOMAR allows for a comparison of datasets acquired and assessment of the wreck following not only a 13-year interval from its initial seabed survey in 2007 but also comparison with the archaeological results from the NMS project in 1999-2000.

La Surveillante is one of the most intact 18^th-century wrecks in Irish waters, the remains surviving from the orlop deck down to its copper-sheathed keelson; as such, it is of critical importance for our understanding of frigate construction and ships from that period as well as being a tangible link to one of the major maritime events of that time in our history. The Seabed mapping currently being carried out by INFOMAR is of immense use to archaeology, particularly when recording deep-water shipwreck sites that are not readily accessible to diving. The mapping can be drawn on as a monitoring mechanism to assist in our management of sites like La Surveillante, helping to reveal potential impacts both cultural and natural, including increased threats from climate change.

References used:

Brady, K, McKeon, C., Lyttleton, J & Lawler, I. 2012. Warships, U-Boats and Liners: A Guide to

            Shipwrecks Mapped in Irish Waters, (Government of Ireland Publications).

Breen, C. 2001. Integrated Marine Investigations on the Historic Shipwreck La Surveillante. Centre

for Maritime Archaeology Monograph Series No. 1 (University of Ulster Publication).

Explore more about the La Surveillante and other wrecks around the Irish coastline on the National Monuments Service Wreck Viewer: https://bit.ly/3qBouR7
